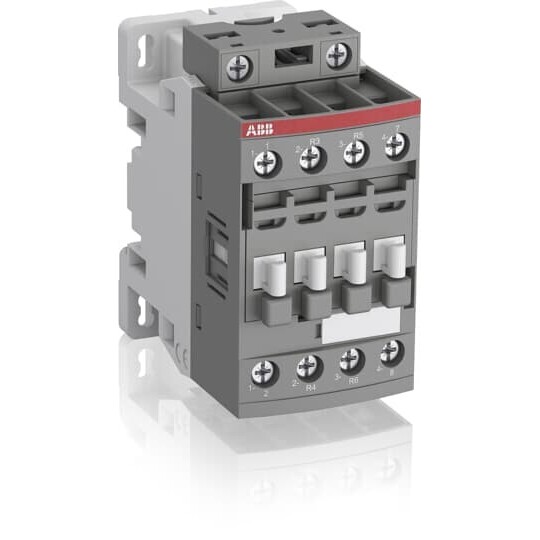

AF09 4P CONTR 48-130VAC/DC

Height: 1.00
Width: 1.00
Length: 1.00
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • AF09-22-00-12

  • Description: AF09 4P CONTR 48-130VAC/DC
  • Extended Description: AF09 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF... contactors include an electronic coil interface
  • Alternate Codes: 03471523116221,3471523116221,804325539104,AF09220012
  • UPC: 804325539104
  • UNSPSC : 39121529-4755
  • Manufacturer: ABB Control Inc
  • Brand: ABB
  • Packaging: EA
  • Your Price: $61.41
  • Quantity:
  • This product is not in stock - please contact us to confirm lead-time or place an order

Special Features: Features: Operating time: 40 - 95 MS (NO closing), 38 - 90 MS (NC opening) between coil energization, 11 - 95 MS (NO opening), 13 - 98 MS (NC closed) between coil de-energization Stripping length: 10 MM Screwdriver type: Flat 5.5 Diameter / Pozidriv 2; Motor Rating: 7.5 HP At 550 - 600 VAC; Maximum Breaking Capacity: 106 AMP At 690 V, 250 AMP At 440 V; Tightening Torque: 13 IN-LB (Main Circuit), 11 IN-LB (Control Circuit); Voltage Rating: 600 V (UL/CSA), 690 V (IEC); Wire Size: (1 Or 2) 16 - 10 AWG (Main); Endurance: Mechanical: 10 Million Cycles; Number Of Poles: 4; Enclosure: IP20; Environmental Conditions: Maximum Operating Altitude Permissible: 3000 M, Storage Temperature: -60 To 80 DEG C; Operating Current: 25 AMP At 40/60 DEG C, 22 AMP At 70 DEG C; Insulation Voltage: 690 V (IEC 60947-4-1), 600 V (UL); Impulse Withstand Voltage: 6 KV

Standards: C/US UL 508 Listed, CSA C22.2 No.14, RINA, CB, GOST, CE Certified, IEC 60947-1 / 60947-4-1 And EN 60947-1 / 60947-4-1 Approved, RoHS Compliant

Global Part #1SBL137501R1200


AF09 4P CONTR, 48-130VAC/DC
