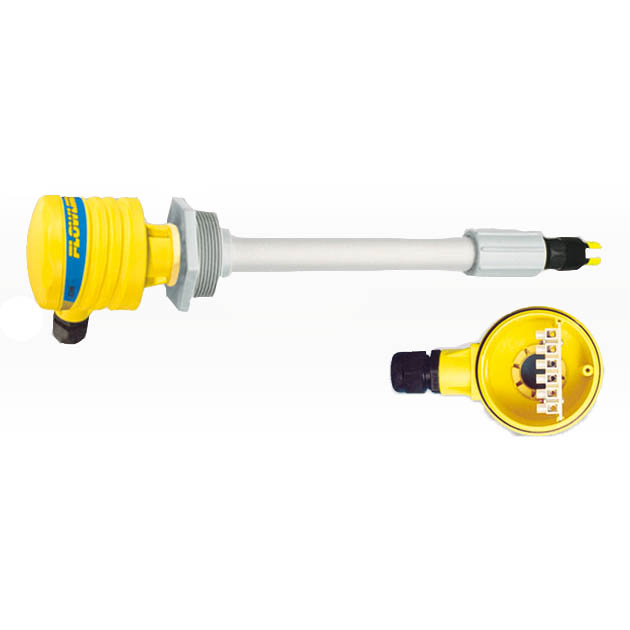

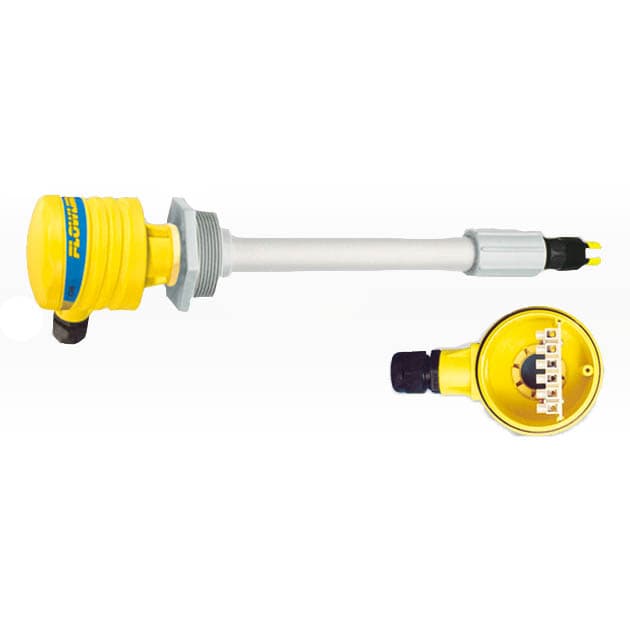

Buoyancy, SPDT Reed, PP, 1-1/2" NPT

MUST SPECIFY 'A' DIMENSION TO QUOTE/ORDER
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • AV16-4247-A

  • Description: Buoyancy, SPDT Reed, PP, 1-1/2" NPT
  • Extended Description: Buoyancy, SPDT Reed, PP, 1-1/2" NPT
  • Alternate Codes: AV164247A
  • UNSPSC : 41111938-6170
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: Switch-Pak
  • Packaging: EA
  • Your Price: $362.14
  • This product is not in stock - please contact us to confirm lead-time or place an order

  • Application

    • The general purpose submersible pressure level transmitter is offered in three styles for different liquid types and provides continuous level measurement up to 46’ (14m) of water column with a 4-20 mA signal output. Select the LD31 liquid level sensor for relatively clean water, light weight oil or diluted chemical. Application examples include water wells and ponds. Select the LD32 liquid level sensor for dirty, foaming or slurry type liquids. Application examples include industrial pump lift stations. The LD34 miniature submersible level transmitter is only 0.63? in diameter making it ideal for level monitoring in well and borehole applications.


  • Specifications

    • Range
      • -SX01: 0 to 5 psi (0.34 bar),0 to 11’ (0 to 3.4m) wc
      • -SX11: 0 to 10 psi (0.69 bar),0 to 23’ (0 to 7m) wc
      • -SX21: 0 to 15 psi (1.0 bar),0 to 34’ (0 to 10.4m) wc
      • -SX31: 0 to 20 psi (1.38 bar),0 to 46’ (0 to 14m) wc
    • Accuracy: ± 0.25% of full scale
    • Configuration: None, fixed span
    • Supply voltage: 13 to 30 VDC
    • Loop resist.: 900 Ohms
    • Signal output: 4-20 mA, two-wire
    • Process temp.
      • LD31: F: 0° to 150° (C: -18° to 66°)
      • LD32: F: 0° to 200° (C: -18° to 93°)
      • LD34: F: -4° to 176° (C: -20° to 80°)
    • Temp. comp.:
      • LD31: F: 0 to 140° (C: -18 to 60°)
      • LD32: F: 0° to 180° (C: -18 to 82°)
      • LD34: F: 32° to 158° (C: 0 to 70°)
    • Proof pressure: 2 x full scale
    • Trans. material
      • LD31: 316 SS, 316L SS, Buna-N & PVC
      • LD32: 316 SS, 316L SS, Buna-N
      • LD34: 316 SS
    • Trans. thread: 1/2” NPT
    • Cable type: 2-conductor, shielded with vent tube
    • Cable length:
      • -SX01 & SX11: 40’ (12.2m)
      • -SX21 & SX31: 60’ (18.3m)
    • Cable material
      • -S1X1: Polyurethane
      • -S2X1: ETFE
    • Classification: General purpose
    • Compliance: CESensor

  • Features

    • Corrosion resistant 316 SS transducer with polyurethane or ETFE cable
    • Strong cable design with maintenance free breather tube and vent filter
    • Enhanced LD32 has rugged clog and damage resistant diaphragm design
    • Automatic temperature compensation for accurate measurement
