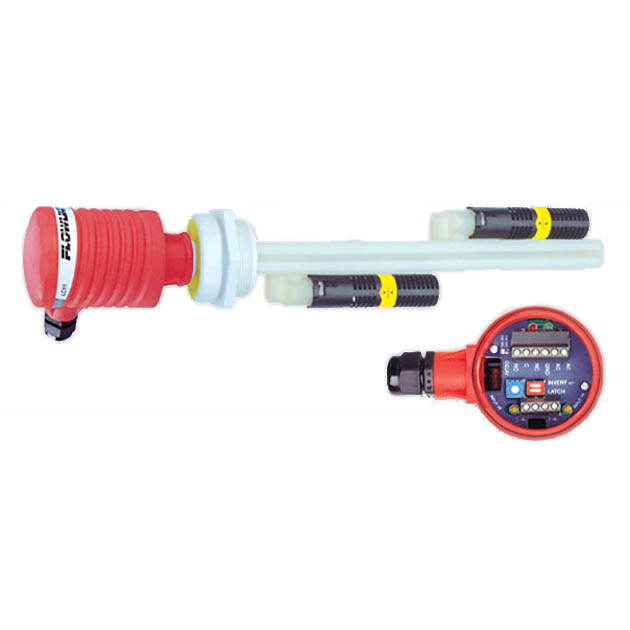

Buoyancy, w/Strobe, PP, 2" NPT

#402 in  Level Sensors or Transmitters
MUST SPECIFY 'A/B/C' DIMENSIONS TO QUOTE/ORDER
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.

  • AV23-4323-A-B-C

  • Description: Buoyancy, w/Strobe, PP, 2" NPT
  • Extended Description: Buoyancy, w/Strobe, PP, 2" NPT
  • Alternate Codes: AV234323ABC
  • UNSPSC : 41111938-6170
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: Smart-Trak
  • Packaging: EA
  • Your Price: $852.86
  • This product is not in stock - please contact us to confirm lead-time or place an order

  • Application

    • The general purpose loop powered level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter. For field mount installation, add a single or two indicator NEMA box.

  • Specifications

    • Display type: LCD, 5-digit
    • Display units: Engineering
    • Display output: -9999 to 99999
    • Display height: 0.6” (15mm)
    • Decimal point: Floating
    • Backlight: LED, orange
    • Configuration: Push button
    • Memory: Non-volatile
    • Sensor input: (1) 4-20 mA transmitter
    • Loop power: 12-30 VDC
    • Voltage drop
      • 2.0 VDC w/o backlight
      • 5.7 VDC w/backlight
    • Ambient temp.: F: -22° to 149° (C: -30° to 65°)
    • Enclosure type: 1/8 DIN, panel mount
    • Enclosure rating: NEMA 4X (IP65) faceplate
    • Enclosure mat’l: Polycarbonate
    • Classification: General purpose
    • Compliance: CE

  • Features

    • Easy configuration via the push button display module
    • LCD main display with secondary unit and bar graph display
    • DIN enclosure with NEMA 4X faceplate and shallow case
    • Linear, square root and programmable exponent functions
    • Non-volatile memory with security password protection
    • Windowed NEMA box accessory for field installations
