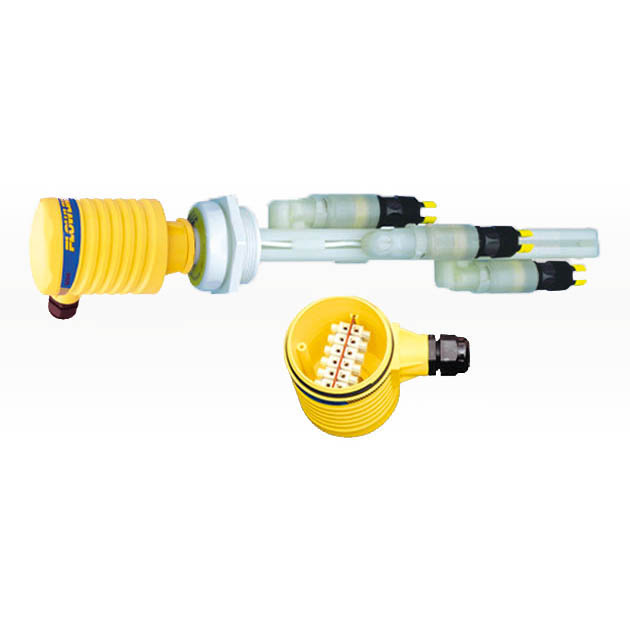

Buoyancy, 2 x SPDT Reed, PP, 2" G
#262 in Level Sensors or Transmitters
MUST SPECIFY 'A/B/C' DIMENSIONS TO QUOTE/ORDER
-
Application
-
The general purpose level controller displays engineering units with one 4-20 mA or 0-10 VDC continuous level sensor input and is offered in three configurations with optional 2 or 4 programmable relays, and an isolated 4-20 mA repeater. Each relay can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve) or duplex (two pumps) level control modes.
-
-
Specifications
- Display type: LED, 6-digit
- Display units: Engineering
- Display output: -99999 to 999999
- Display height
- Main: 0.6” (15mm) high
- Secondary: 0.46” (12mm)
- Decimal point: Floating
- LED indication: Relay status
- Configuration: Push button
- Memory: Non-volatile
- Linearization: 2-32 point function
- Sensor input: (1) 4-20 mA or 0-10 VDC
- Supply voltage: 85-265 VAC @ 50-60 H
- Consumption: 15 watts ma
- Sensor supply: 24 VDC ± 5% @ 200 mA
- Repeater output: 4-20 mA, 24 VDC ± 5% @ 40 mA supply
- Contact type
- -12_1: (2) SPDT relays
- -14_1: (4) SPDT relays
- Contact rating: 3A @ 30 VDC and 250 VAC resistive load
- Ambient temp.: F: -40° to 149° (C: -40° to 65°)
- Enclosure type: 1/8 DIN, panel mount
- Enclosure rating: NEMA 4X (IP65) faceplate
- Enclosure mat.: Polycarbonate
- Classification: General purpose
- Compliance: CE
- Approvals: UL, cUL listed, E160849, 508 industrial control equipment
-
Features
- LED main display and secondary unit display with relay status
- Easy configuration via the push button display module
- DIN enclosure with NEMA 4X faceplate and shallow case
- Isolated power supply to sensor with 4-20 mA repeater output
- Non-volatile memory with security password protection
- 32-point linearization function for volumetric measurement
