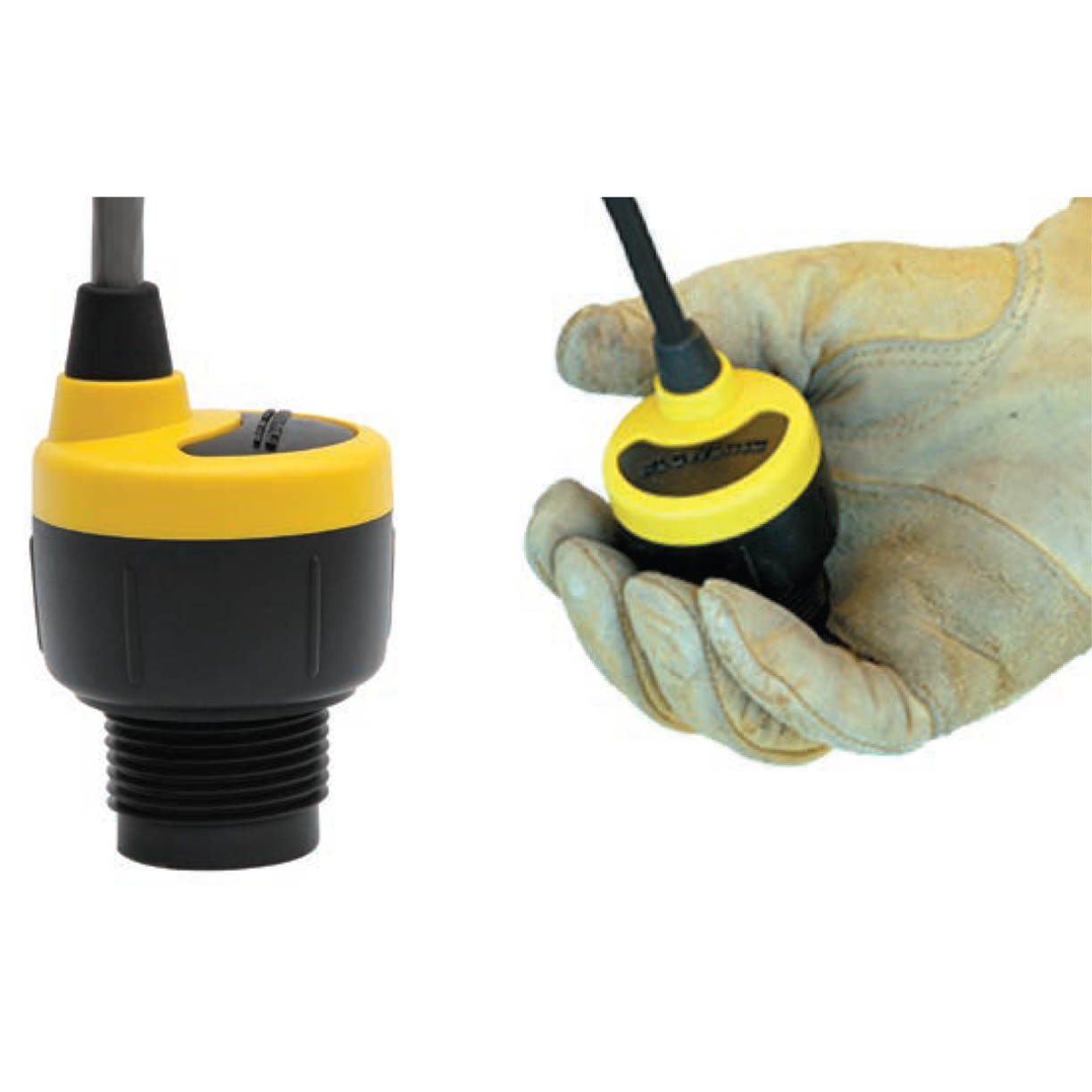

1.25m (49.2") Range, 1" G, 4-20mA, 4 SPS

  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • DL14-10

  • Description: 1.25m (49.2") Range, 1" G, 4-20mA, 4 SPS
  • Extended Description: 1.25m (49.2") Range, 1" G, 4-20mA, 4 SPS
  • Alternate Codes: B00DEFCN0S,DL1410
  • UNSPSC : 41111960-6192
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: EchoPod
  • Packaging: EA
  • Your Price: $321.43
  • This product is not in stock - please contact us to confirm lead-time or place an order

Application

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2″ (1.25m) with a 4-20 mA signal output, and is configured via our free WebCal software. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for small day tank, skid, IBC, sump and process tank level applications.

Features

  • Switch and control functions with continuous level measurement output up to 49.2′ (1.25m)
  • Configuration is fast and easy via WebCal software and USB adapter
  • Narrow 2″ beam width and short 2″ dead band optimized for small tanks
  • Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
    • 1 pump or valve with 3 alarms
    • 2 pumps (lead-lag) with 2 alarms
    • 2 pumps (duplexing) with 2 alarms
    • 4 independent switch point alarms
  • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
  • Automatic temperature compensation for accurate measurement
