1.25m (49.2") Range, 1" G, 4-20mA, 4 SPS

Application

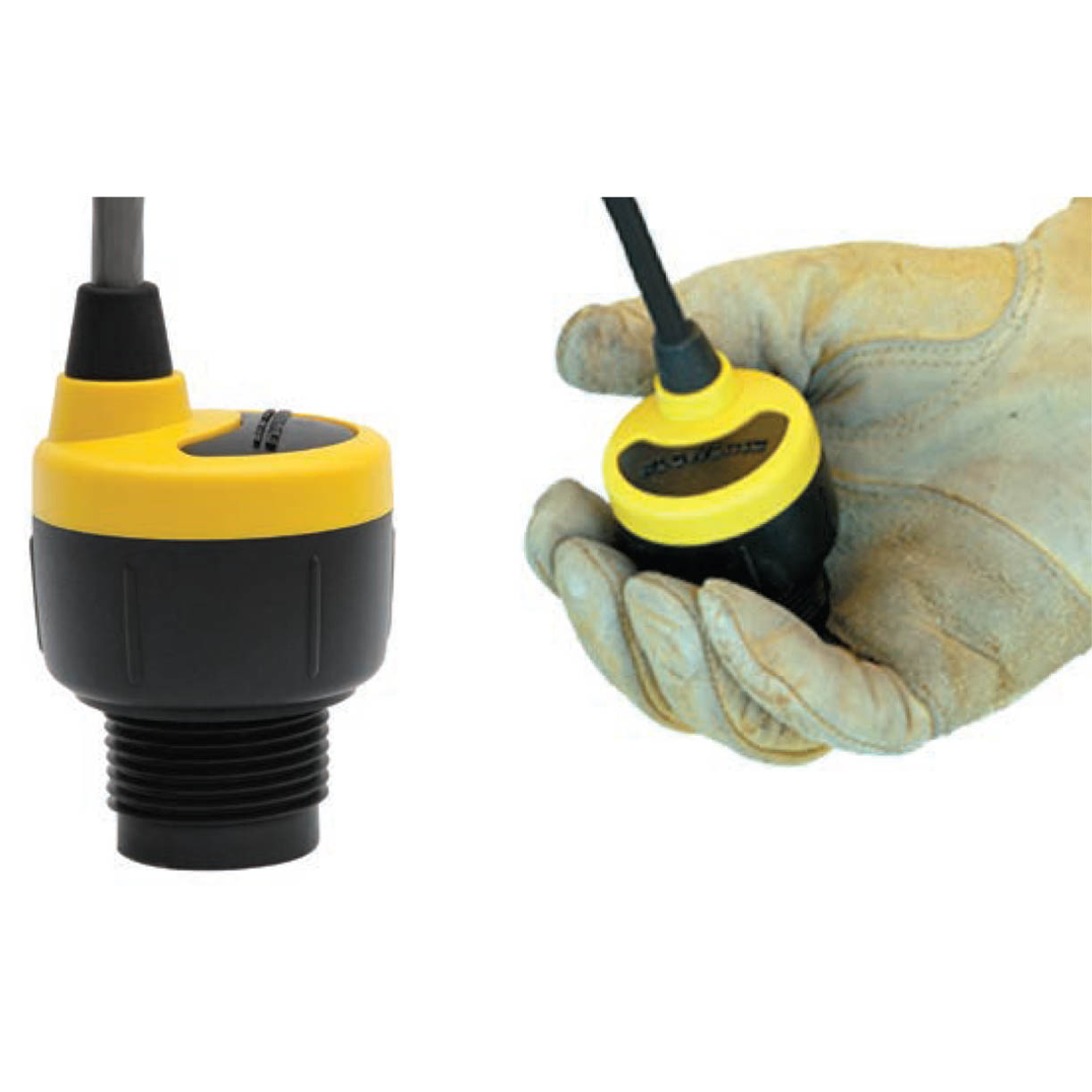

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2″ (1.25m) with a 4-20 mA signal output, and is configured via our free WebCal software. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for small day tank, skid, IBC, sump and process tank level applications.

Features

• Switch and control functions with continuous level measurement output up to 49.2′ (1.25m)
• Configuration is fast and easy via WebCal software and USB adapter
• Narrow 2″ beam width and short 2″ dead band optimized for small tanks
• Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
  • 1 pump or valve with 3 alarms
  • 2 pumps (lead-lag) with 2 alarms
  • 2 pumps (duplexing) with 2 alarms
  • 4 independent switch point alarms
• PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
• Automatic temperature compensation for accurate measurement
