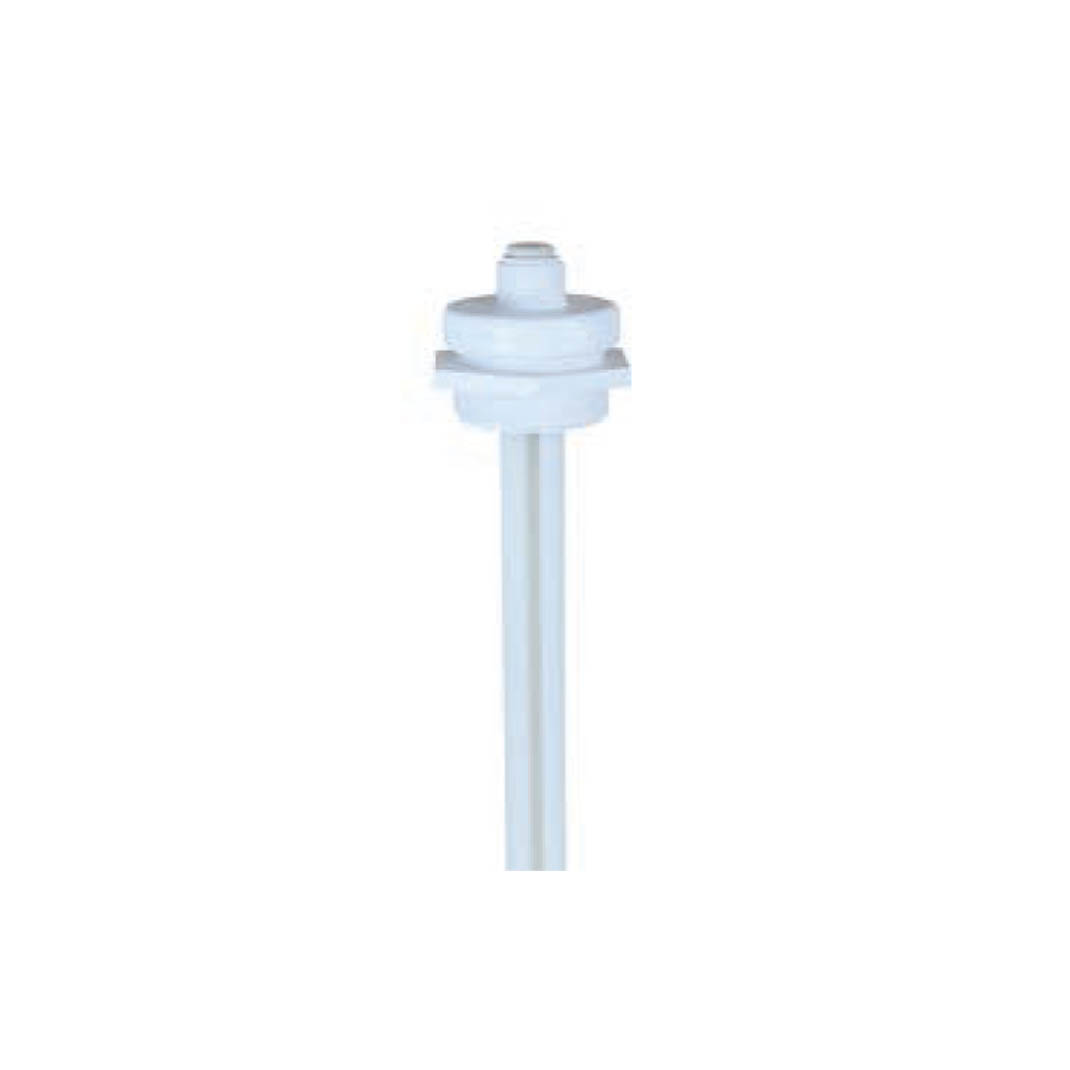

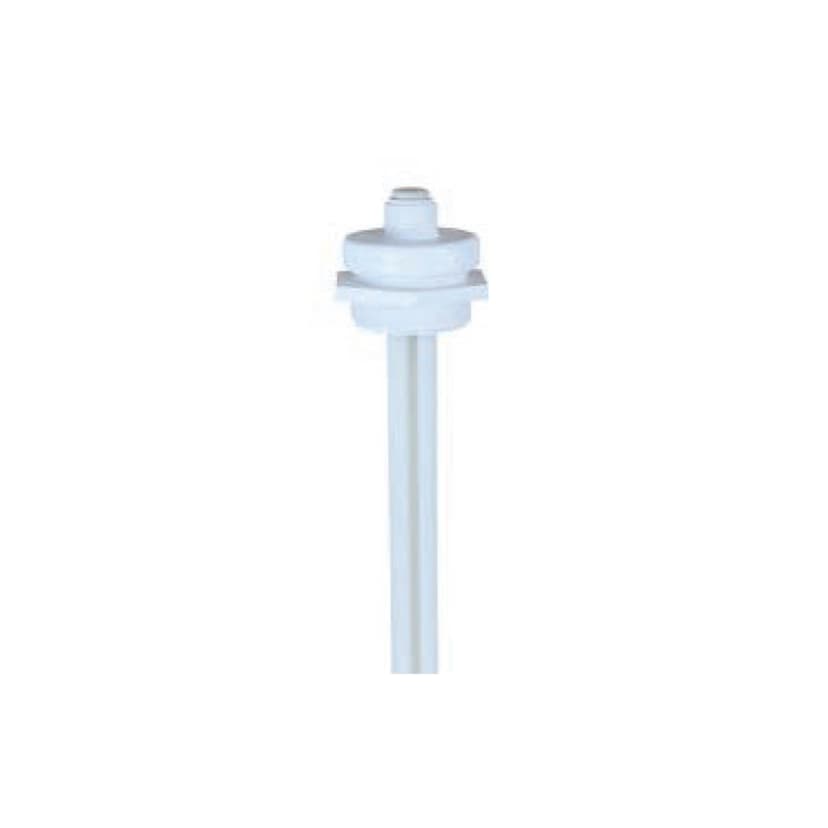

Smart Trak™ 4' Track, 2" NPT Plug, 3/4
#366 in Level Sensors or Transmitters
| Length: | 48.00 |
-
Application
-
Available in CSA approved, general purpose (LC4X) or isolation (LC9X) with built-in intrinsic safety barriers for use with associated apparatus, the level controller is offered in three configurations for pump and valve control. The LC40/90 accepts one level sensor input and provides one 10A relay. The LC41 accepts two level sensor inputs and provides one latching 10A relay for automatic fill or empty control. The LC42/92 accepts three level sensor inputs with one latching 10A relay output for automatic fill or empty control, and a second non-latching 10A relay for high level alarm or low level alarm. For field mount installation, add a single or dual indicator NEMA box.
-
-
Specifications
- Supply voltage: 120 / 240 VAC, 50-60 Hz
- Consumption: 5 watts maximum
- Sensor inputs
- LC40/90: (1) level switch
- LC41: (2) level swiitches
- LC42/92: (3) level switches
- Sensor supply: 13.5 VDC @ 27 mA
- LED indication: Sensor, power & relay
- Contact type
- LC40/90: (1) SPDT relay
- LC41: (1) SPDT relay, latching
- LC42/92: (2) SPDT relays, (one latching)
- Contact rating: 250 VAC @ 10A
- Contact output: Selectable NO / NC
- Contact latch
- LC40/90: N/A
- LC41: Selectable ON / OFF
- LC42/92: Selectable ON / OFF
- Contact delay: 0-60 seconds
- Ambient temp.: F: -40° to 140° (C: -40° to 60°)
- Enclosure type: 35mm DIN rail
- Enclosure mat.: PP, UL94VO
- Classification
- LC4X: General purpose
- LC9X: Associated apparatus
- Compliance: CE (LC4X only)
- Approvals: CSA, LR 79326
- Safety: Class 1, Groups A, B, C (LC9X only) & D; Class II, Groups E, F & G; Class III
- Parameter
- Voc = 17.47 VDC
- Isc =(LC9X only) 0.4597A
- Ca = 0.494 μF
- La = 0.119 mH
-
Features
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Optional built-in intrinsic safety barriers for hazardous applications (LC9X)
- Easy setup with LED indicators for sensor, power and relay status
- 35 mm DIN rail mount polypropylene enclosure with removable terminal strips
- Invert switch changes relay state from NO to NC without rewiring
