Application
-

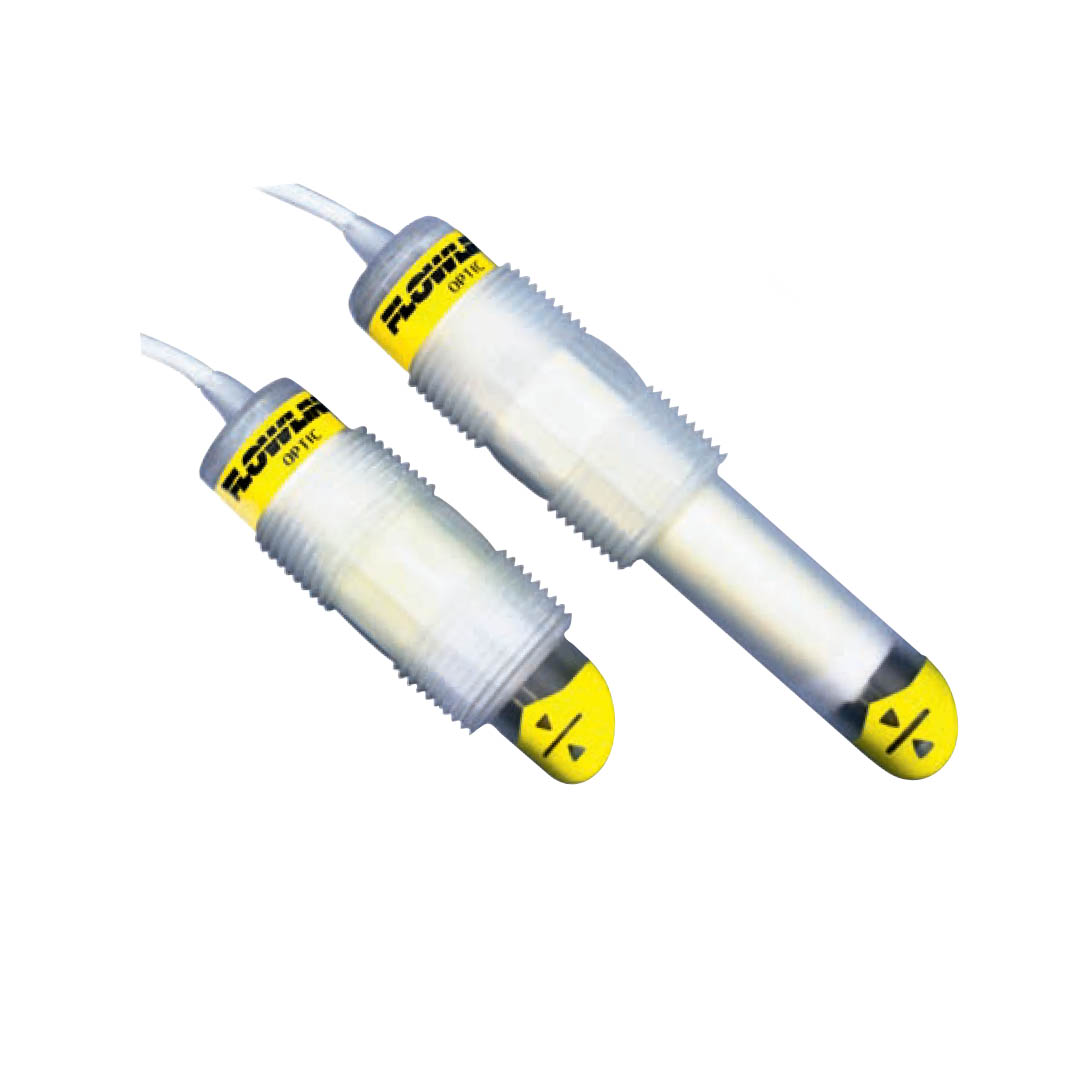

Offered in liquid and gas sensor types, the general purpose flow switch provides reliable low or no-flow detection of relatively clean, non-coating media with one 1A relay output. Liquid examples include water and acetic acid. Available in Polypropylene-Ryton® and PVDF, the short flow sensor is used in pipe or ducting from 1/2” to 1 1/2”, and the long flow sensor is used in 2” and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases as a low-flow alarm. The flow sensor is best applied in applications with relatively constant temperature.
-
-
Specifications
- Set point range
- FT10: 0.04 to 3 fps(0.012 to 0.91 mps)
- GT10: 1 to 90 fps(0.3 to 27 mps)
- Repeatability: ± 0.5% of set point
- Response time: 1-10 seconds
- Set point adjust.: Potentiometer
- LED indication: Flow status
- Supply voltage: 14-36 VDC
- Consumption: 70 mA maximum
- Contact type: (1) SPST relay
- Contact rating: 60 VA, 1A maximum
- Contact output: Selectable NO / NC
- Process temp.: F: 32° to 140° (C: 0° to 60°)
- Ambient temp.: F: -40° to 140° (C: -40° to 60°)
- Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi(0.113 bar) per ºC above 25º C
- Sensor rating: NEMA 4X (IP65)
- Wetted material:
- -1XX5: PP-Ryton®
- -5XX5: PVDF
- Cable jack. mat.
- -1XX5: Polypropylene
- -5XX5: PFA
- Cable type: 4-conductor, shielded
- Cable length: 10’ (3m)
- Process mount: 3/4” NPT (3/4” G)
- Mount. gasket: Viton®
- Classification: General purpose
- Compliance: CE
- Set point range
-
Features
- Rugged Polypropylene-Ryton® or PVDF sensor for corrosive liquids and gases
- Adjustable set point with LED for flow or no-flow status indication
- 60VA relay selectable NO or NC via power supply wiring polarity
- Solid state sensor is not damaged by over-ranging flow velocities
