Switch-Tek™ Ultrasonic Level Switch, P
#154 in Level Sensors or Transmitters
-
Application
-

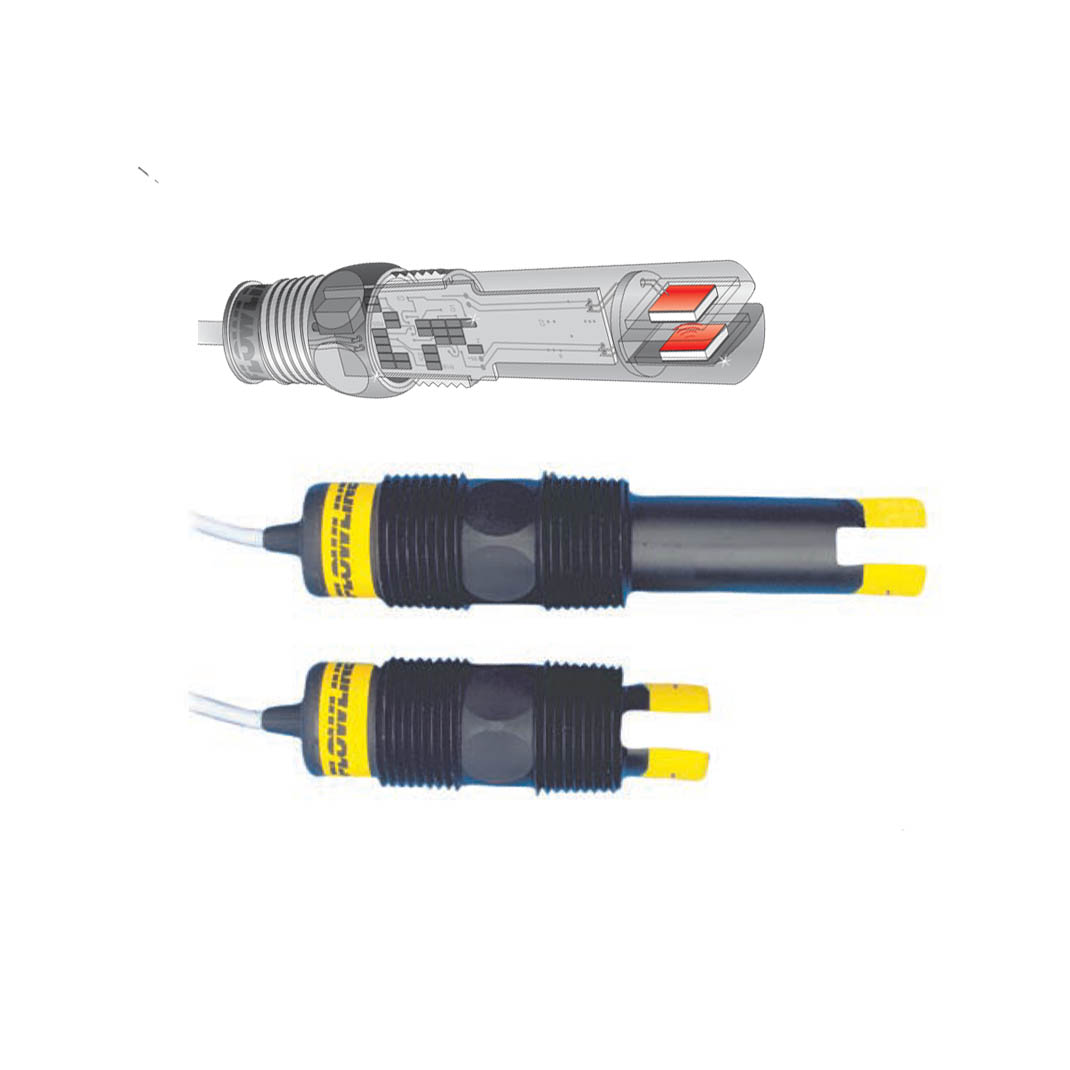

Offered in liquid and gas sensor types, the general purpose flow switch package provides reliable no or low-flow detection of relatively clean non-coating media with a 16A compact flow controller for pump or process protection. Liquid examples includes water and sulfuric acid. The optional flash alarm brings attention to low-flow alarm conditions. Available in Polypropylene-Ryton® and PVDF, the short flow sensor is used in pipe or ducting from 1/2” to 1 1/2”, and the long flow sensor is used in 2” and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases for low-flow control. The flow sensor is best applied in applications with relatively constant temperature.
-
-
Specifications
- Set point range
- AT1X: 0.04 to 3 fps (0.012 to 0.91 mps)
- AG1X: 1 to 90 fps (0.3 to 27 mps)
- Repeatability: ± 0.5% of set point
- Response time: 1-10 seconds
- Set point adjust.: Potentiometer
- LED indication: Sensor, power & relay
- Supply voltage: 120 / 240 VAC, 50-60 Hz
- Consumption: 0.25A maximum
- Strobe type
- -X61X: Xenon tube
- -X62X: N/A
- Strobe flash
- -X61X: 1 per second
- -X62X: N/A
- Contact type: (1) SPDT relay
- Contact rating: 250 VAC @ 16A
- Contact output: Selectable NO / NC
- Contact delay: 0-60 seconds
- Process temp.: F: 32° to 140° (C: 0° to 60°)
- Ambient temp.: F: -40° to 140° (C: -40° to 60°)
- Pressure: 150 psi (10 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
- Enclosure rating: NEMA 4X (IP65)
- Enclosure mat.
- -X61X: PP, UL94VO & PC
- -X62X: PP, UL94VO
- Conduit entrance:1/2” NPT
- Wetted material
- -16XX: PP-Ryton®
- -36XX: PVDF
- Process mount: 3/4” NPT (3/4” G)
- Mount. gasket: Viton®
- Classification: General purpose
- Compliance: CE
- Set point range
-
Features
- Rugged Polypropylene-Ryton® or PVDF sensor for corrosive liquids and gases
- Fail-safe relay control of pumps or valves with 0-60 second delay
- Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
- Optional strobe brings immediate attention to flow alarm conditions
- Invert switch changes relay state from NO to NC without rewiring
- Solid state sensor is not damaged by over-ranging flow velocities
