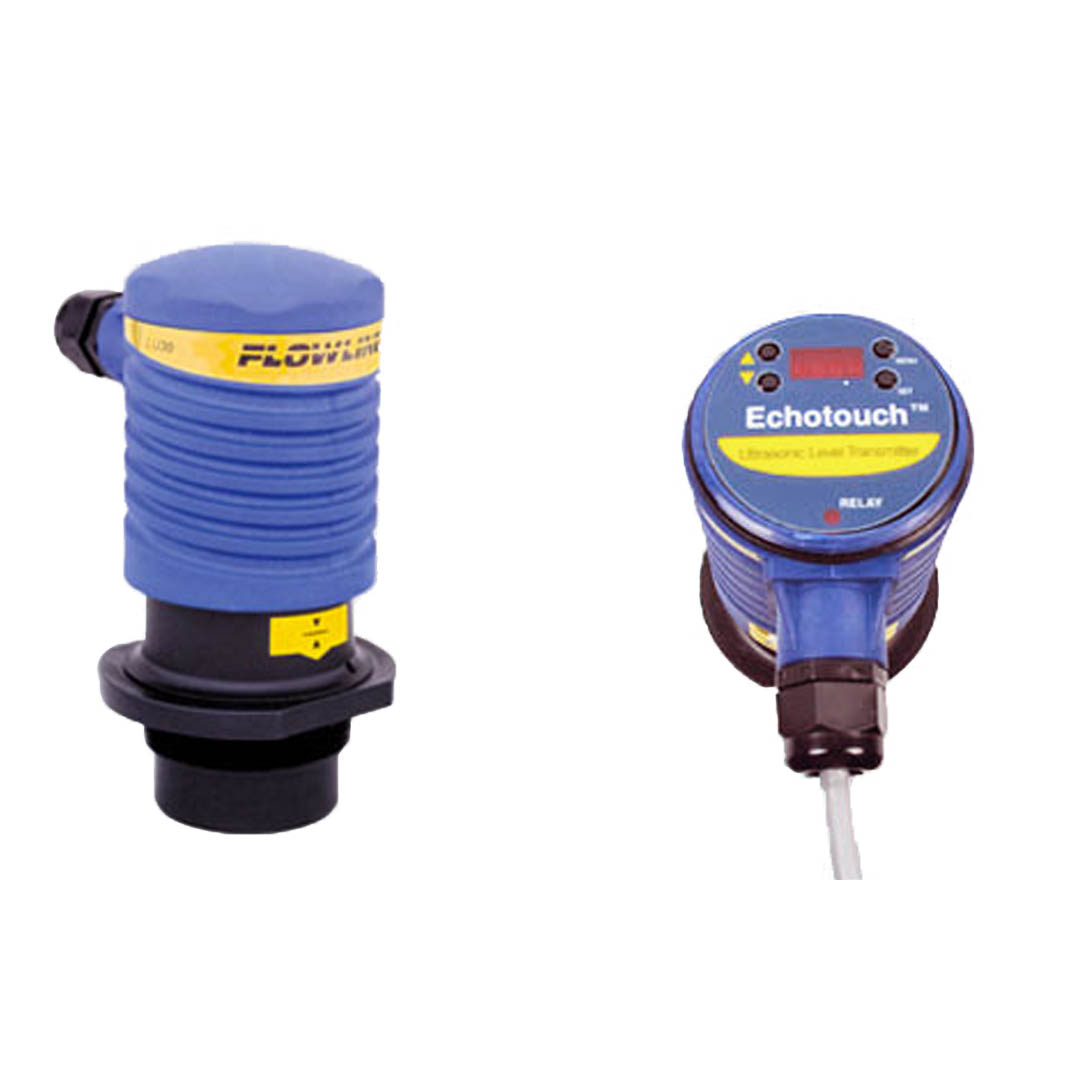

Echotouch 3-Wire Trans.-24.5' Range

Application

The general purpose 3-wire ultrasonic level transmitter provides continuous level measurement up to 24.5′ (7.4m) with a 4-20 mA signal output, and is configured via the integral push button display module. The level sensor has one 10A relay which can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty with fail-safe logic. This non-contact liquid level sensor is well suited for corrosive, ultrapure, sticky or dirty liquids, and is widely selected for bulk storage and day tank level applications.

Features

• Level measurement up to 24.5′ (7.4m) with 1 programmable relay
• Configuration is simple via integral push button display module
• LED digital display indicates level in inches or centimeters
• Programmable relay for alarm or automatic fill-empty control
• Polypropylene enclosure rated NEMA 4X with rugged PVDF transducer
