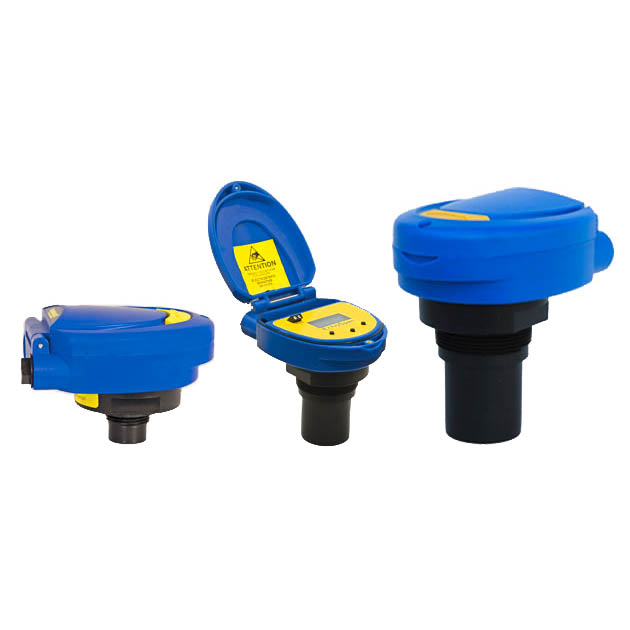

5.5m (18') Range, 2" NPT

  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • LU81-5101

  • Description: 5.5m (18') Range, 2" NPT
  • Extended Description: 5.5m (18') Range, 2" NPT
  • Alternate Codes: B0061P0L02,LU815101
  • UNSPSC : 41111960-6192
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: EchoPod
  • In Stock: 1
  • Ready to Ship: 1
  • Packaging: EA
  • Your Price: $678.57
  • Quantity:

  • Application

    • The general purpose flow controller is offered in two configurations for low-flow pump and process protection. The LC80 accepts one flow sensor input and provides one 10A relay for low flow control. The LC82 accepts two flow sensor inputs and provides two 10A relays for dual low flow control. Package this flow controller with our liquid or gas flow switch sensors. For field mount installation, add a single or dual controller NEMA box.


  • Specifications

    • Supply voltage: 120 / 240 VAC, 50-60 Hz
    • Consumption: 5 watts maximum
    • Sensor inputs
      • LC80: (1) flow switch
      • LC82: (2) flow swiitches
    • Sensor supply: 24 VDC @ 50 mA
    • LED indication: Sensor, power & relay
    • Contact type
      • LC80: (1) SPDT relay
      • LC82: (2) SPDT relays
    • Contact rating: 250 VAC @ 10A
    • Contact output: Selectable NO / NC
    • Contact latch
      • LC80: N/A
      • LC82: Selectable ON / OFF
    • Contact delay: 0-60 seconds
    • Ambient temp: F: -40° to 140° (C: -40° to 60°)
    • Enclosure type: 35mm DIN rail
    • Enclosure mat.: PP, UL94VO
    • Classification: General purpose
    • Compliance: CE
    • Approvals: CSA, LR 79326

  • Features

    • Fail-safe relay control of pumps or valves with 0-60 second delay
    • Easy setup with LED indicators for sensor, power and relay status
    • 35 mm DIN rail mount polypropylene enclosure with removable terminal strips
    • Invert switch changes relay state from NO to NC without rewiring
