SAFETY COVER FOR MINI MPDB

#204 in  Crab Joints
Height: 0.07
Width: 1.05
Length: 5.70
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • MPDBC6263

  • Description: SAFETY COVER FOR MINI MPDB

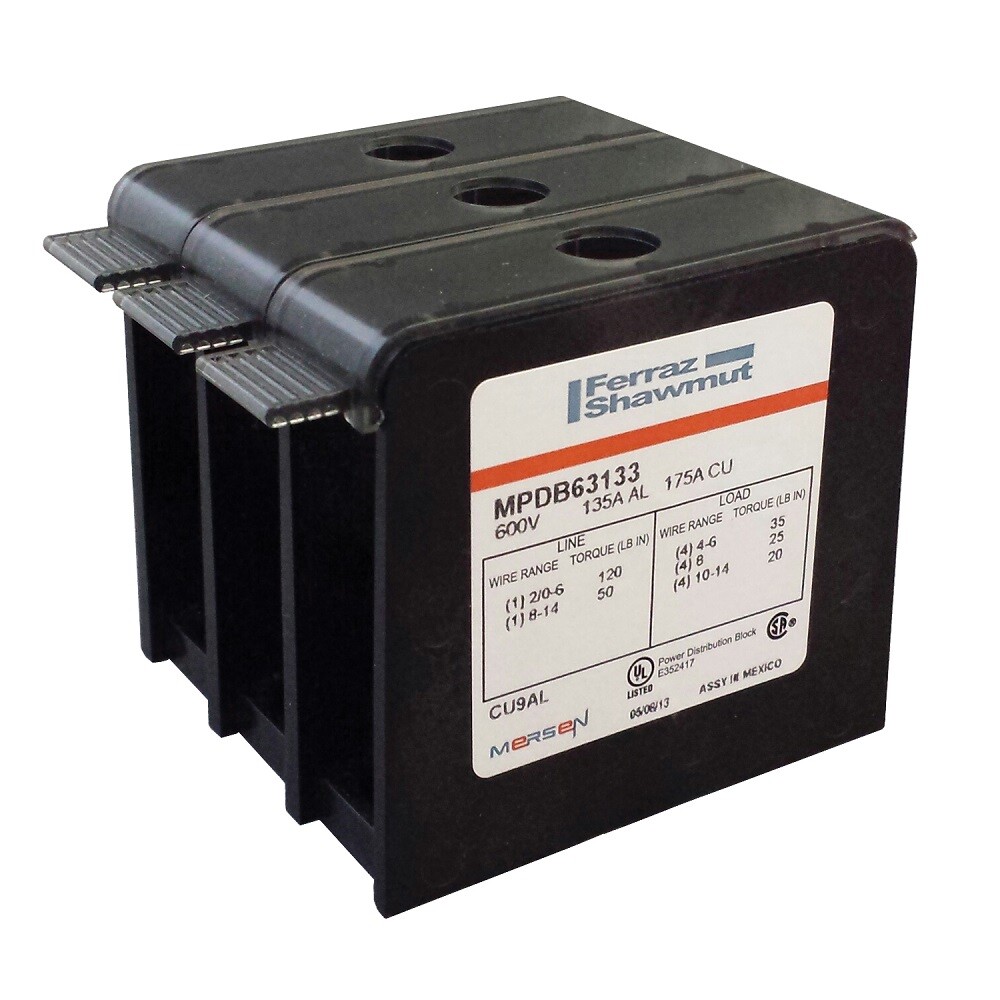

  • Extended Description: The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All bloc
  • Alternate Codes: 78200144933,782001449339
  • UPC: 782001449339
  • UNSPSC : 39121453-4680
  • Standard Lead Time: 30
  • Manufacturer: Mersen - Ferraz Shawmut
  • Brand: Mersen - Ferraz Shawmut
  • In Stock: 2
  • Ready to Ship: 2
  • Packaging: EA
  • Your Price: $5.82
  • Quantity:

Application: Cable splicing Splitting primary power into secondary circuits Fixed junction tap-off points

Special Features: Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field witho ut the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. Seethrough, hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block

Standards: UL Listed - File E352417 CSA Certified - Class 6228 01 RoHS Compliant

SAFETY COVER FOR MINI MPDB
