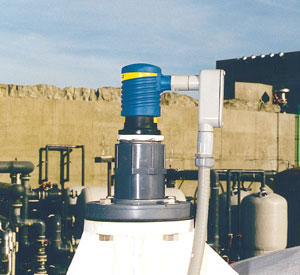

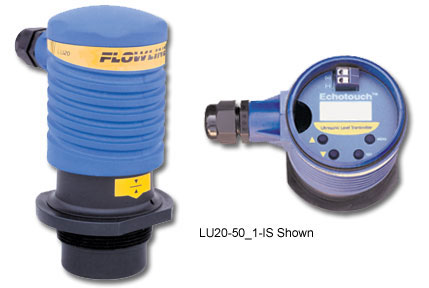

| CSA approved intrinsically safe for use in general purpose or hazardous applications, the two-wire ultrasonic transmitter provides non-contact level measurement up to 18' or 5.4m, and is ideally suited for challenging corrosive, slurry or waste liquids. Push button calibrated, the transmitter is typically selected for atmospheric bulk storage, day tank and waste sump applications located within a classified area. Media examples include diesel fuel and sulfuric acid. |
|
| |
Intrinsically safe transmitter for use in hazardous environments |
| |
LCD digital display indicates level in inches or centimeters |
| |
EasyCal simple push button calibration for all user set points |
| |
PP enclosure rated NEMA 4X with rugged PVDF transducer |
| |
Adjustable dead band and range filters eliminate false echo returns |
|
| Tech Tip |
| Complete your intrinsically safe level transmitter package with the LB10-1001 or equivalent intrinsic safety barrier. |
 |
|
|
Specifications
|
|
Range:
|
6" to 18' (15cm to 5.4m)
|
|
Accuracy:
|
± 0.25% of span
|
|
Display type:
|
LCD, 4-digit
|
|
Beam cone:
|
8° conical
|
|
Dead band:
|
6" (15cm)
|
|
Supply voltage:
|
12-32 VDC
|
|
Signal output:
|
4-20 mA, two-wire
|
|
Calibration:
|
Push button
|
|
Process temp:
|
F: -4° to 140°
C: -20° to 60°
|
|
Pressure:
|
30 psi (2 bar)
|
|
Conduit:
|
1/2" NPT
|
|
Enclosure rating:
|
NEMA 4X (IP65)
|
|
Process mount:
|
2" NPT (2" G)
|
|
Trans. material
|
PVDF
|
|
Classification:
|
Intrinsically Safe
|
|
|
|
|
