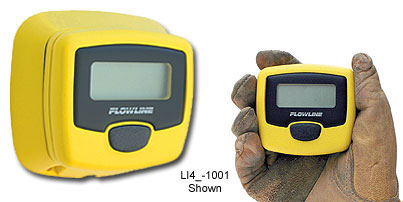

| Factory calibrated, the general purpose indicator reads 0-100% of span with two or four sensor input channels. A single push button allows users to scroll through their active channels. With the optional MicroCal PC calibration kit, users can customize engineering units, configure FET alarm set points, and/or linearize the volumetric measurement of odd shaped tanks. Select the 2 channel for loop insertion with PLC's and the 4 channel for stand alone indication. |
|
| |
Compatible with two-wire level transmitter, switch and leak detection sensors |
| |
Alarms can be configured for high level, low level, out-of-bounds level or leak |
| |
Compact NEMA 4X enclosure supports panel and wall mount installations |
| |
Adjustable LED backlight for use at night or in dimly lit applications |
|
| Calibration |
| Your indicator may be configured in less than a minute using the MicroCal PC calibration kit. User configuration files are retained for indicator cloning and record keeping. It's level indication made simple! |
|
|
|
Specifications
|
|
Display type :
|
LCD, 5-digit
|
|
Display units:
|
Factory cal: % of span
PC cal: engineering*
|
|
Display output:
|
Transmitter: 0-99999
Switch: Good / Alarm*
|
|
Display backlight:
|
LED bar (adjustable)
|
|
Linearization:*
|
2-16 point function
|
|
Input channels:
|
LI42: (2) 4-20mA
LI44: (4) 4-20mA
|
|
Supply voltage:
|
12-24 VDC
|
|
PC-cal. interface:*
|
USB® adaptor w/cable
|
|
PC-cal. software:*
|
MicroCal (Windows®)
|
|
Memory:
|
Non-volatile
|
|
Alarm type:*
|
LI42: (2) FET switches
with opt. audible chirp
LI44: (1) FET switch with opt. audible chirp
|
|
Alarm set points:*
|
1 point: alarm
2 points: out of bounds
|
|
Switch rating:
|
1A @ 24 VDC
|
|
Switch output:*
|
Normally open
|
|
Operating temp.:
|
F: -4° to 140°
C:-20° to 60°
|
|
Cable length:
|
10' (3m)
|
|
Enclosure rating:
|
NEMA 4X (IP65)
|
|
Enclosure mat'l.:
|
PC/ABS FR
|
|
Classification:
|
General purpose
|
|

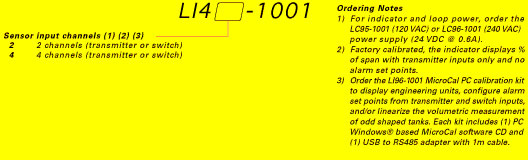

* Requires the LI96-1001 MicroCal calibration kit
|
|
 |
|
