+GF+ Ball Valves

The ball valve type 546 is yet another innovative product developed by GF Piping Systems; it comprises extensive experience and the latest technology.

A broad spectrum of product features provides you with quality, flexibility, reliability, in addition to modularity. The ball valve type 546, successor of the ball valve type 346, is the fully developed result of 40 years GF Piping Systems experience in plastic pipeline Know-How.

The ball valve type 546 is part of a modular system that satisfies your requirements on operational reliability as well as those on eco-friendliness and cost-effectiveness.

Product Brochure:

Data Sheet
User's Manual

Fields of Application:

• Chemical process industry
• Life science
• Microelectronics
• Measurement and control
• Water treatment
• Ship building
• Food & beverage

Advantages:

• for the manual- and the actuated valve with many options - from electrical position feedack, the lockable handle to the pipe clip
• biggest range of products (via the configurator several executions can be generated)
• ergonomic handle ( optional lockable ) with integrated tool for dismounting the union bushing
• integrated fixation system with mounted threaded inserts

The valve for all mixing- and diverting processes in your application. The ball valve type 543 is available as a horizontal and vertical version. The horizontal valve can be ordered with L- or T-Port ball. The vertical valve comes in the L-Port configuration or with a optional diverter ball.

Product Brochure:

Data Sheet
User's Manual

Fields of Application:

• CPI
• Life science
• Microelectronics
• Measurement and control
• Water treatment
• Ship building

Advantages:

• From the manual valve to the actuated ball valve with several options
• Indicator for the position of the ball on the handle
• Integrated fixing system with mounting inserts (horizontal)
• Handle with integrated tool for removing of union bushings
• The horizontal version includes three ball seals
• 90° end stop attached for all horizontal valves
• Safety build-up due to indexed ball, stem and handle

Complement valve to the ball valve type 546 for non critical applications. The ball valve type 375 offers you a basic PVC-U true union ball valve.

Product Brochure:

Data Sheet
User's Manual

Fields of Application:

• Non-critical chemical applications
• Water treatment projects
• Swimming pools

Advantages:

• Available from d16DN10 up to d110DN100
• Handle with integrated tool for removing / adjusting the union bushing

The ball valve type 323 (metering valve) is the perfect valve for the exact dosing of media in your applications. The special bore profile of the ball as well as the 180° fine scale enable an accurate adjustment of the dosing process.

Product Brochure:

User's Manual

Fields of Application:

• Wherever exact dosing of media in your applications is required

Advantages:

• Compact design
• Union nut enables a one sided removal and an easy access to the internal components
• Handle design indicates the position of the ball

The ball valve type 322 is the perfect valve for the use in the laboratory. It is characterized by his compact design and the linked space saving installation.

Fields of Application:

• All laboratory or similar applications

Advantages:

• Compact design
• Union nut enables a one sided removal and an easy access to the internal components
• Handle design indicates the position of the ball

The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrode design and uses the unique foul-proof patented DryLoc® connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life.

The DryLoc connector with foul-proof gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton® threaded sensor body and choice of flat pH, bulb pH, or flat ORP sensing elements provides broad range of chemical compatibility for a wide variety of applications.

There are two optional sensing versions, HF and LC, available. The quick temperature response is available in either a PT-1000 or 3KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments. The 2724-2726 electrodes are general-purpose sensors ideal for a wide range of applications. The sensors incorporate ¾” NPT or ISO 7/1 R¾ threads for installing into standard pipe-tees. They can also be mounted directly into Signet standard fittings.

Fields of Application:

• Water distribution
• Swimmimg pools
• Agriculture
• Irrigation
• Fish farming

Advantages:

• Space saving installation due to the compact design
• Coloured handles for a clear differentiation of processes in your piping system
• The right sealing materials for water applications

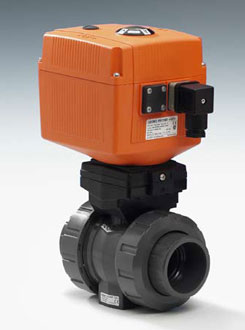

Type 107 is based on the Ball Valve Type 546 (d16DN10 to d63DN50) with the electric actuator EA11. The Type 107 is designed for automated standard applications with no special demands.

Product Brochure:

User's Manual

Fields of Application:

• Chemical Process Industry
• Life Science
• Microelectronics
• Measurement and Control
• Water Treatment
• Ship Building
• Food & Beverage

Advantages:

• Electric feedback for ball position integrated into multifunctional module or actuator
• Heating element
• Fail safe return unit with battery
• Integrated emergency override

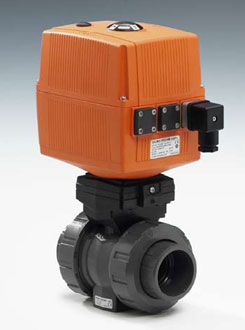

Ball valves Type 130, 131, 132, 133, 134 and 135 are based on the ball valve type 546 (d16DN10 to d110DN100) and the electric actuator EA21 (DN10-DN50) or EA31 (DN65-DN100). Type range 130-135 is designed as modular upgradable ball valve for Applications, which request special process demands.

Product Brochure:

User's Manual

Fields of Application:

• Chemical Process Industry
• Life Science
• Microelectronics
• Measurement and Control
• Water Treatment
• Ship Building
• Food & Beverage

Advantages:

• Eectrical feedback 4-20mA with additional limit switches in different executions integrated into the actuator or in the multifunctional module
• Run time control
• Engine current control
• Cycle control
• Cycle time prolonging
• Position control for 90° and 180° angle
• Integrated manual emergency override

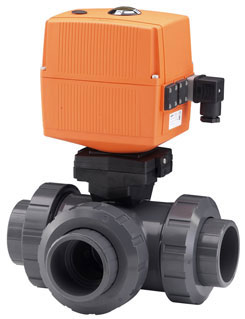

Ball valves Type 185 - 188 are based on ball valve Type 543 (d16DN10 to d63DN50) and electric actuator EA21. The Type range 185-188 is designed as modular upgradeable 3-Way ball valve for mixing and diverting applications which demand special process requirements.

Product Brochure:

User's Manual

Fields of Application:

• Chemical Process Industry
• Life Science
• Microelectronics
• Measurement and Control
• Water Treatment
• Ship Building
• Food & Beverage

Advantages:

• Electric Feedback 4-20mA with additional limit switches with different functions in the actuator
• Cycle time control
• Engine current control
• Cycle control
• Cycle time prolonging
• Position control for 90° and 180° bends
• Integrated emergency manual override

Ball valves Type 230, 231, 232, 233, 234, 235 are based Type 546 (d16DN10 to d63DN50) and electric Actuator PA11 (DN10-DN25), PA21 (DN32-DN50), PA30-PA45 (DN65-DN100). Type range 230-235 is designed as modular adjustable ball valve for Applikations, which demand special Process requirements.

Fields of Application:

• Chemical Process Industry
• Life Science
• Microelectronics
• Measurement and Control
• Water Treatment
• Ship Building
• Food & Beverage

Advantages:

• Compact design and modular assembly
• Optional with manual override
• Electric feedback when manually actuating valve
• Fast cycle time
• For FC/FO stroke limitation possible
• Pressure connector based on Namur standard

Ball valves Type 285 - 288 are based on ball valve Type 543 (d16DN10 to d63DN50) and electric actuator EA21. The Type range 285-288 is designed as modular upgradeable 3-Way ball valve for mixing and diverting applications which demand special process requirements.

Fields of Application:

• Chemical Process Industry
• Life Science
• Microelectronics
• Measurement and Control
• Water Treatment
• Ship Building
• Food & Beverage

Advantages:

• Compact design and modular assembly
• Preloaded spring packages, standard version FC, DA; FO on request
• Fast cycle time
• For FC/FO stroke limitation possible
• Pressure connector based on Namur standard
