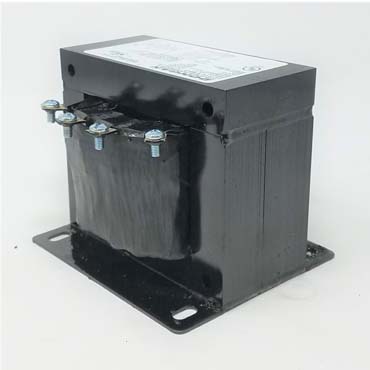

Series 50 - Screw Terminals
UL Listed, File E3210.
CSA Listed thru UL, File E3210
All Copper windings
All designs are rated 50/60 Hertz.
Primary fuse blocks and secondary fuse holders are available and are easily installed.
Nonstandard designs are available by consulting the factory or your Dongan Representative.
| Voltage Combinations |
|
| Suffix |
Primary |
Secondary |
| -052 |
120 X 240 |
24 |
| -053 |
240 X 480 |
120 |
| -054 |
208 |
120 |
| -056 |
600 |
120 |
| -058 |
220/380/415 |
95/115 |
| -059 |
208 or 500
220/380/440/550
230/400/460/575
240/416/480/600 |
85/100/110
91/110/120
95/115/125
99/120/130 |
| -134 |
240 X 480 |
120 / 240 |
|
|

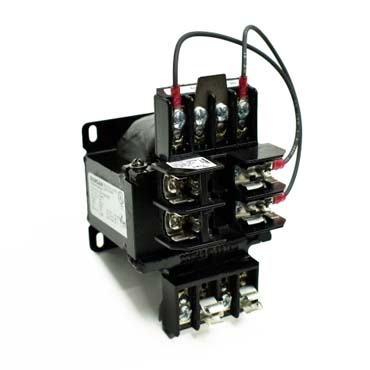

Series HC - Molded Terminals
UL Listed, File E3210.
CSA Certified, File LR 560
All Copper windings
Core mounted barrier type terminal strips.
Series/parallel jumper clips provided.
Secondary fuse kits (FKS) furnished.
Primary fuse kits (FKP2) are available and are easily installed.
Nonstandard designs are available by consulting the factory or your Dongan Representative.
| Voltage Combinations |
|
| Suffix |
Primary |
Secondary |
| -41 |
240 X 480 |
120 |
| -44 |
208 / 240 / 480 |
120 |
| -46 |
600 |
120 |
| -47 |
240 / 480 / 600 |
120 |
| -4100 |
240 X 480 |
120 |
| -4400 |
208 / 240 / 480 |
120 |
|
|

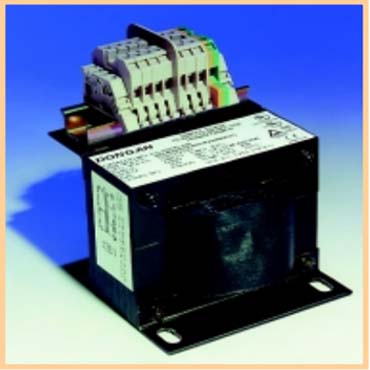

Series ES - CE Marked
CE Marked
TÜV Rheinland Licensed, R 9679035.01
UL Listed, File E3210.
CSA Listed thru UL, File E3210
All Copper windings
IEC type finger safe terminals
50/60 Hertz.
All Series ES are provided with an electrostatic shield (earth metal screen)
All series ES are provided with a color coded protective earth (PE) terminal.
Consult factory for desired voltage combinations and kVA sizes not listed.
| Voltage Combinations |
|
| Suffix |
Primary |
Secondary |
| .326 |
380/400/416/440 460/480/575 |
110/115/120 |
| .366 |
380/416/480 |
120/24 |
| .376 |
380/400/416 |
110/220 115/230 120/240 |
| .386 |
220/380/40/416 |
95/115/120 |
|
 |
| |
|
