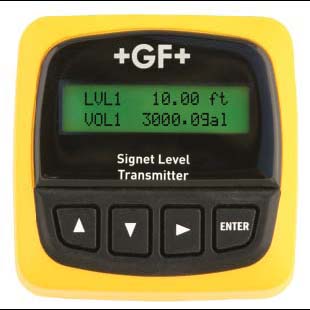

8250 ProcessPro® Level Transmitter
Signet 8250 Level Transmitters are compatible with the Signet 2450 Pressure Sensors. The instrument is available in field and panel mount configurations, single or dual-channel input and equipped with one 4 to 20 mA output for each input channel. The unit also features two relays, plus the ability to support two additional externally mounted relays (for a total of four). Relay operations is selectable for High, Low, Window or Off, and includes fully adjustable hysteresis and trigger time delay. Automatic level-to-volume conversion allows display and control of tank level and/or volume in units such as gallons, kilograms, feet or meters. Simple entry of tank dimensions will allow the instrument to calculate volume from the level measurement.
Features:
- Compatible with Signet 2450 Pressure Sensors
- Single or Dual Channel Input
- 4 to 20 mA Outputs Fully-Scaleable, Reversible and Assignable to Either or Both Channels (8250-3X versions)
- Advanced Relay Control
- Output Simulation
- Manual (up to 10 pts.) and Automatic Level-to-Volume Conversion
- Display Level, Volume or Both
- Units for Level: ft., in., m, cm, %
- Units for Volume: gal., in3, lbs., l, m3, kg, %
- Specific Gravity Entry for Use with Pressure Sensors and Mass Unit Conversion
- User-selectable Averaging for Display and Output
Applications:
- Continuous level and/or volume monitoring
- Local or remote display (up to 400 ft.)
- Fill start/stop control
- Pump protection
- Inventory management
- Storage tank monitoring
- Pump station control
- Waste sumps
- Clarifiers
- Plating lines
- Neutralization tanks
- Overflow protection
- Leak detection
